ABS'O® EDGE MEWPEnergy absorber with integrated adjustable webbing lanyard
Jobs / Activities

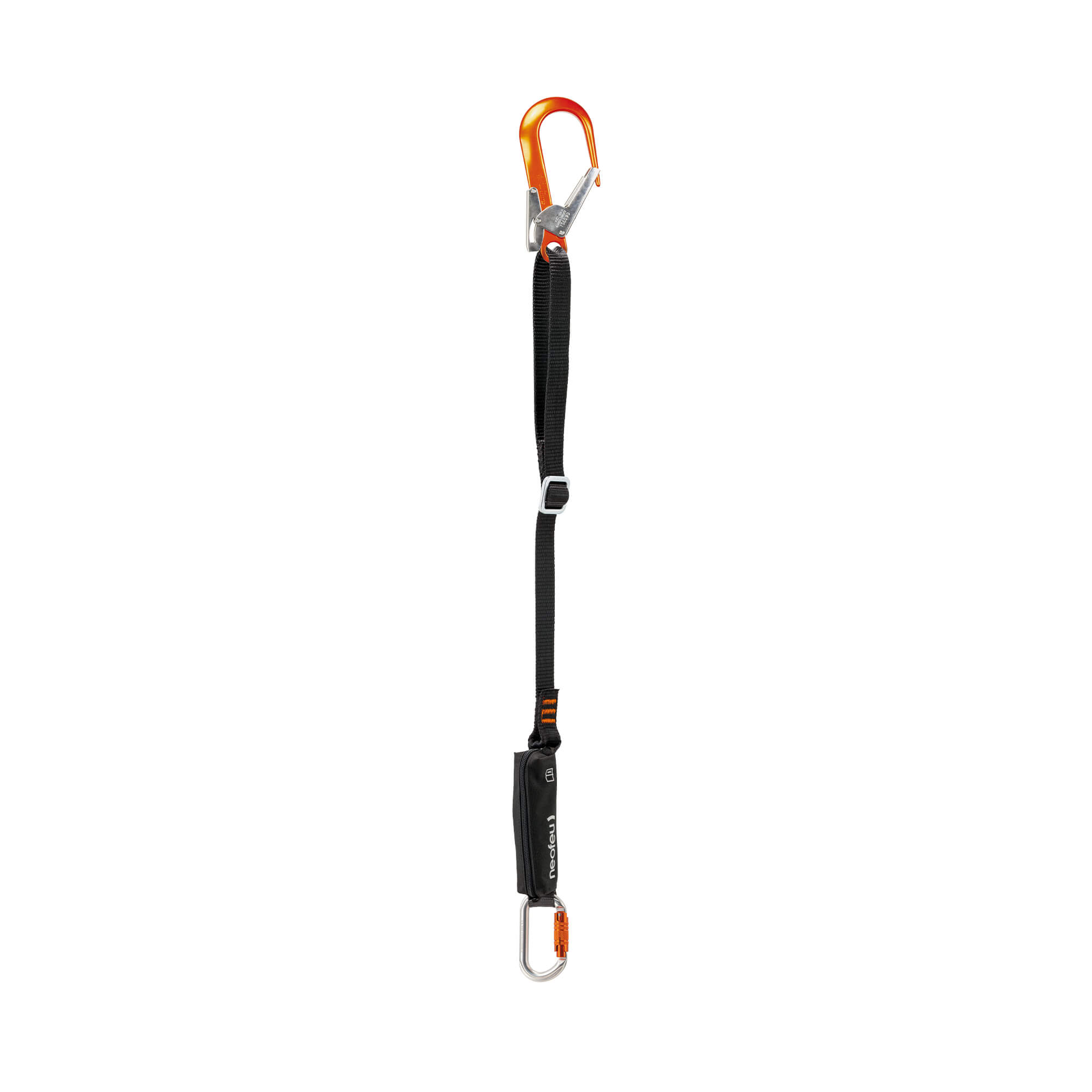

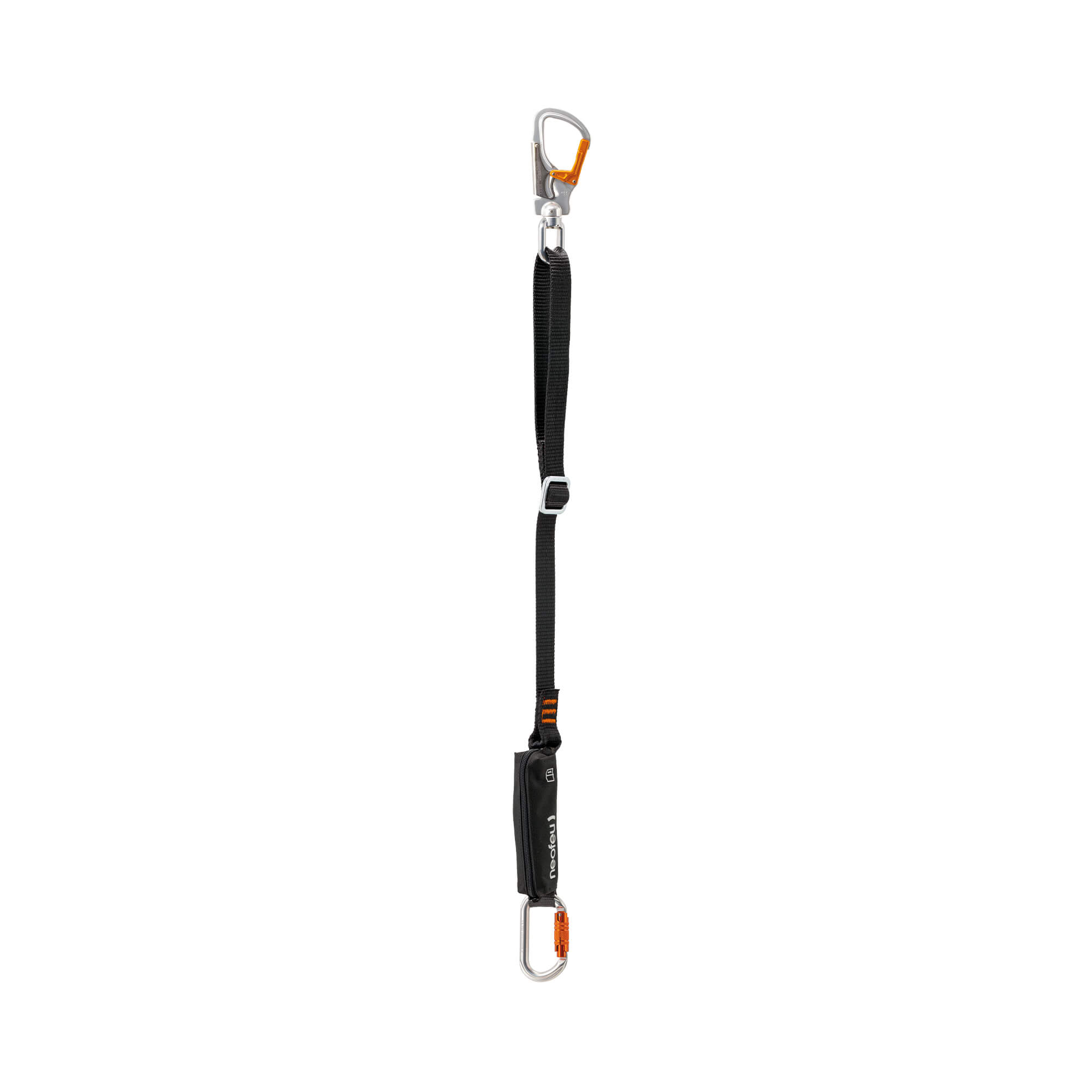

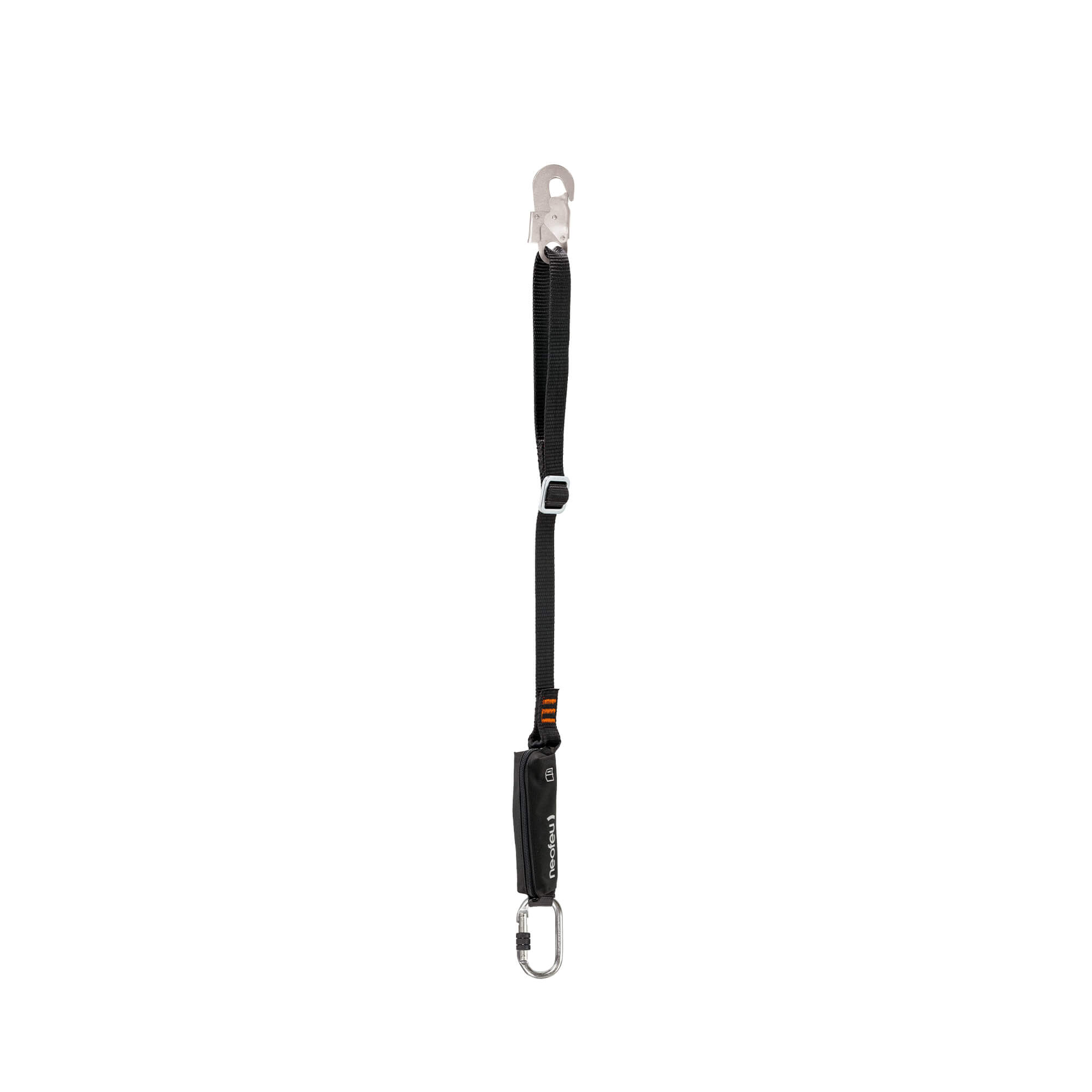

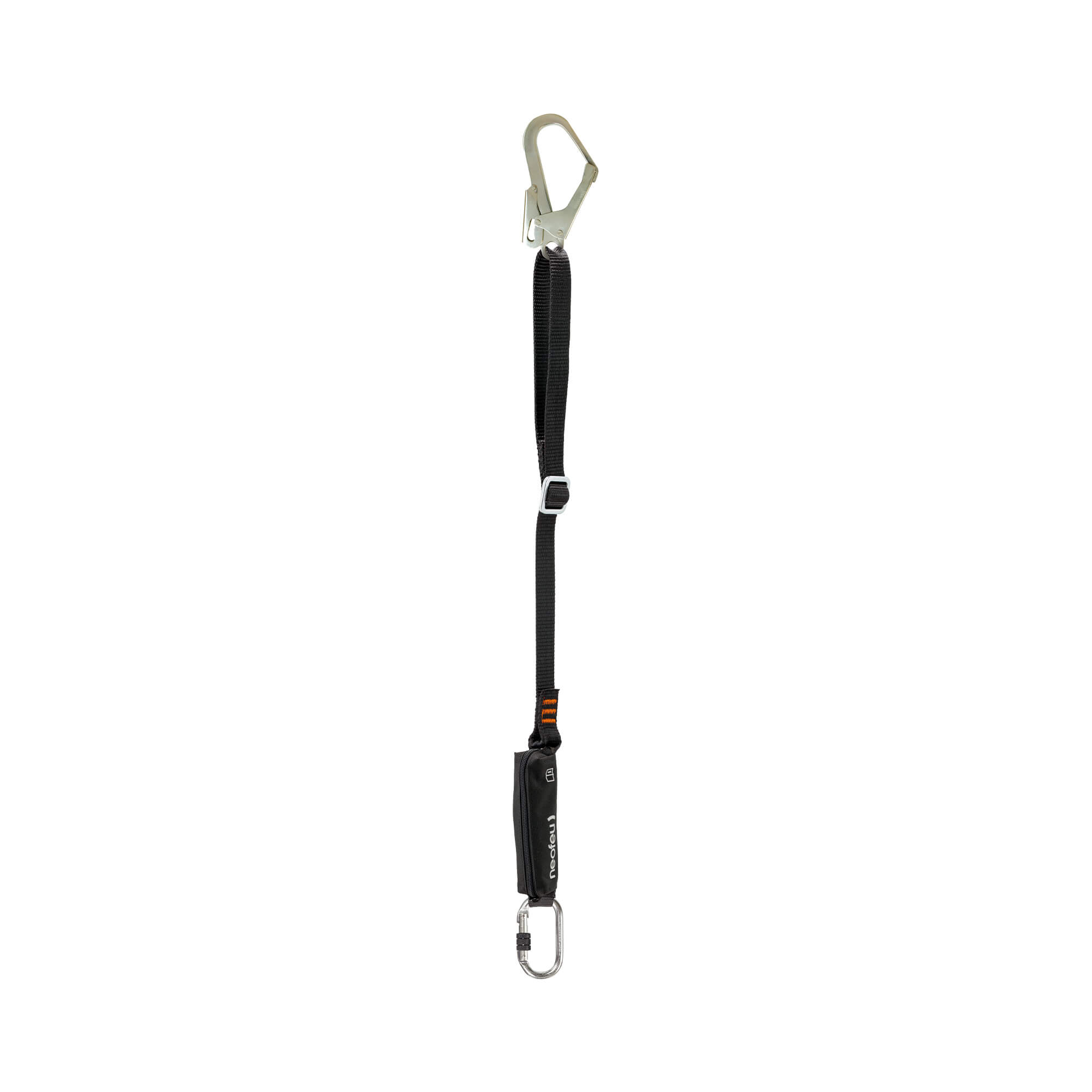

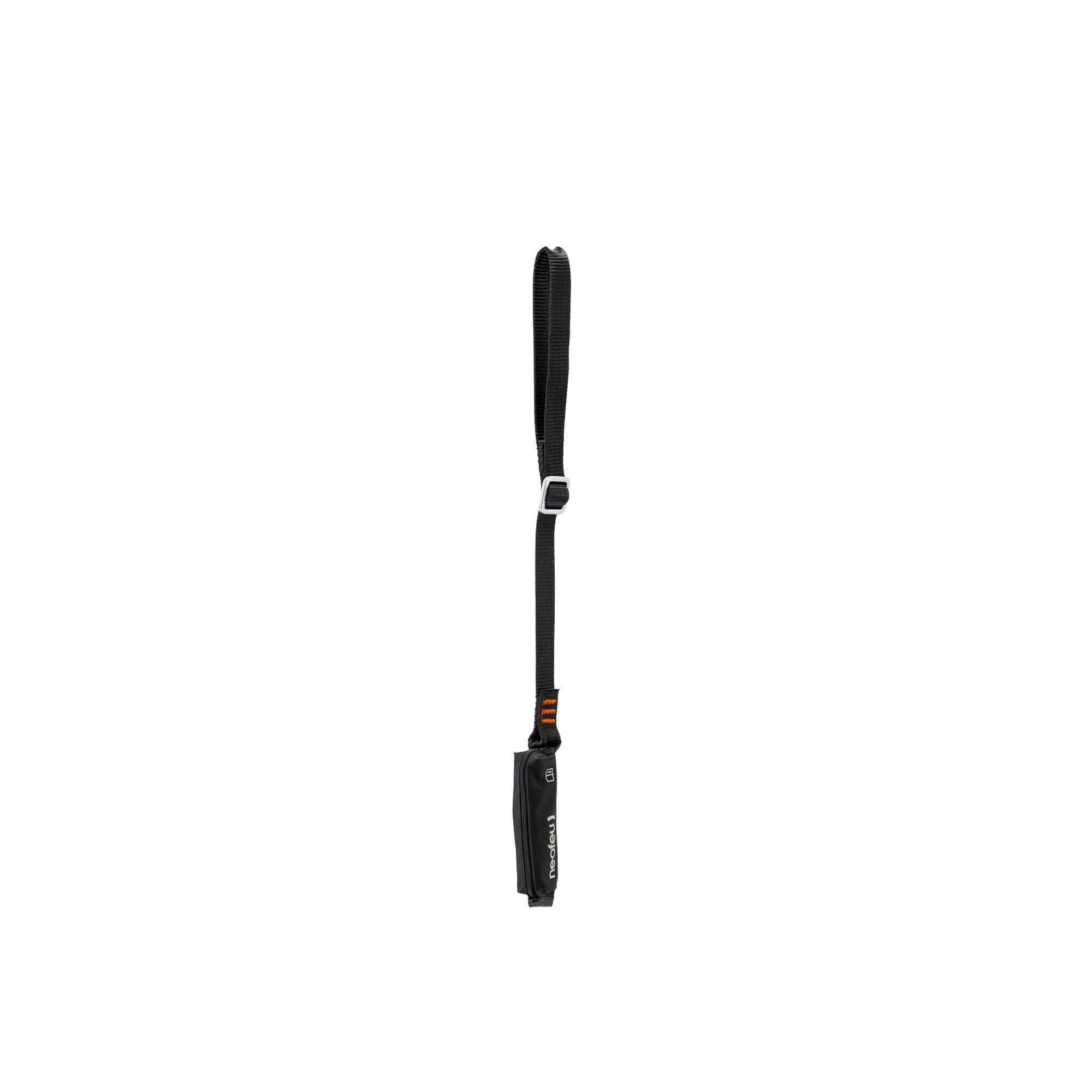

The NHSAR lanyard from the ABS’O® ED\GE range is equipped with an energy absorber integrated into an adjustable webbing lanyard. Tested for horizontal use with maximum rated load of 140kg (user + equipment).
The lanyard length can be adjusted using the steel buckle and configured up to 1.3m (depending on connectors), ensuring optimal adaptation to work restreint and safety in case of fall when used in aerial work platform.
Recommended for works in MEWP (Mobile elevating work platforms) for, this lanyard is intended for short connection between the user and the platform’s anchorage point, reducing the risk of ejection and limiting the impact force transmitted to the body in the event of a fall arrest.
Certifications
- EN 355
- RfU 11.062
- RfU 11.074
Type of connector
Harness side connector
Anchor side connector
technical specifications
- Verticale and horizontale use up to 140 kg
- Energy absorber with a polyamide and polyester tear webbing protected by a polyester cover
- 30mm wide polyester webbing
- Forged steel buckle for length adjusment
- Arrest force < 600 daN
- Static resistance ≥ 15 kN
- Maximum length with connectors 1,3m
- Adjustable length from 0,70 to 1m (without connector)
- Weight : 320g (NHSAR10)
Données Techniques
Lanyard type
- Fall arrest lanyards
Type of products
- Energy absorber with integrated adjustable webbing lanyard
Activities
- Aerial work platform
Lanyard
- Webbing
Horizontal use - EDGE
- Yes
