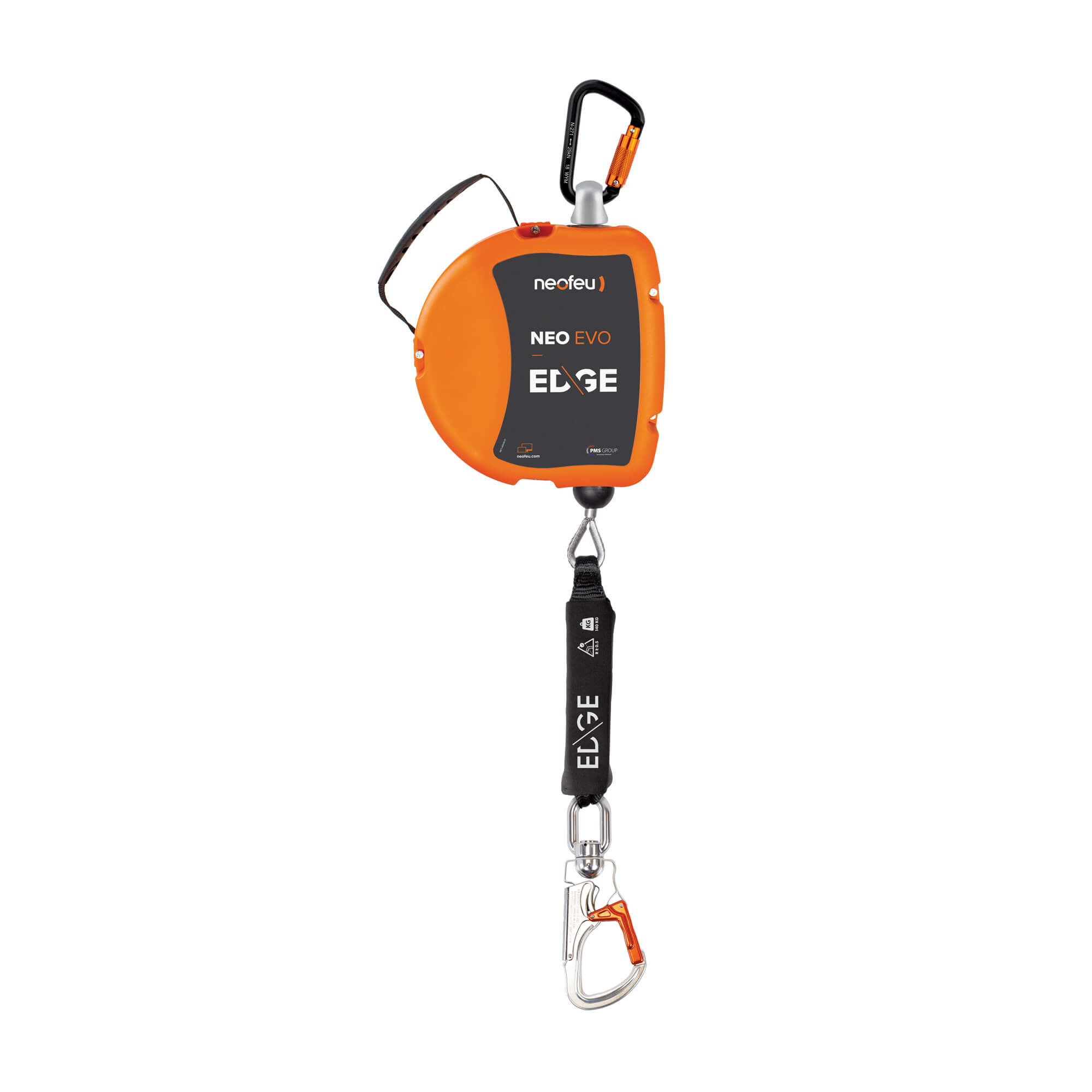

NEO EVO | EDGERetractable type fall arrester
Jobs / Activities
The NEO EVO | EDGE® is a fall arrester fitted with a 12 m retractable steel wire rope.
User-friendly, it is equipped with a textile carrying handle to facilitate its transport. It is recommended for both vertical and horizontal use for any user up to 140 kg. The shock absorber on the cable termination is protected by a polyester cover.
Certifications
- EN 360 : 2023
technical specifications
- Vertical / horizontal use up to 140 kg
- Total length 12 m
- Lanyard in galvanized steel cable Ø 5mm
- High resistance synthetic housing with fiber glass
- Corrosion treated components
- Energy absorber with a polyamide and polyester tearing strap of 31mm breadth wrapped with a protective pouch
- Arrest force < 600 daN
- Swivel anchor hook on top fitted with automatic twist lock connector in aluminium, opening 22 mm

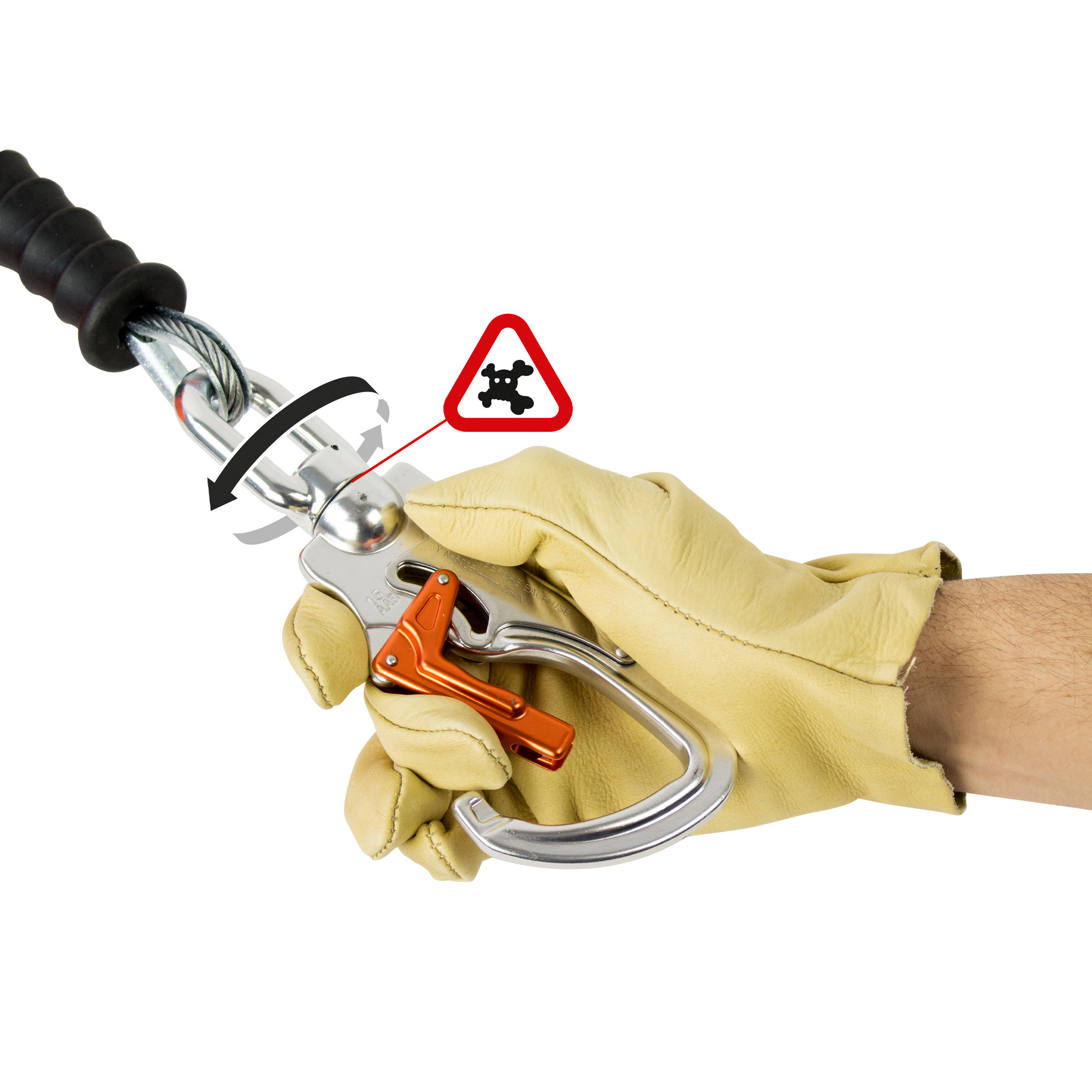

- Automatic swivel connector on cable with fall indicator opening 28 mm in anodized aluminum
- Carry handle in textile and elastomer (not intended for anchorage)
- Weight : 5,69 kg
Minimum clearance
- Vertical (Factor 0) ≥ 1,70m
- Vertical (Factor 0 + Max. offset 30°) ≥ 3,38m
- Horizontal use (EDGE) ≥ 4,60m
Minimum values needed depending on configuration.
Read and understand the user instructions before use.
Check the available clearance and the compatibility of the complete system according to the actual conditions of use.
Données Techniques
Type of products
- Retractable type fall arrester
Activities
- Construction
- Industry
Lanyard
- Steel
Fall indicator
- Yes
Swivel
- Yes
Horizontal use - EDGE
- Yes
Documents
DC.NEO120EVO.01_Rev01
UE Declaration of conformity
FT.NEO120EVOMK.01.M Rev01
Technical data sheet
